TXNR808

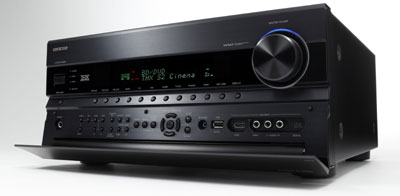

Onkyo TXNR808 7.2-Channel Network Home Theater Receiver (Black)
Meet Onkyo’s midrange powerhouse. The TXNR808 earns its prestigious THX® Select2 Plus™ certification by blending the latest connectivity and processing technology with Onkyo’s renowned amplification prowess. As a network-capable receiver, the TXNR808 is your gateway to streaming audio from your PC or Internet radio. Other connection highlights include seven HDMI® 1.4a inputs with 3D and Audio Return Channel capability; 7.1-multichannel analog inputs for legacy components; a Universal port for Onkyo peripherals; a USB port for iPod® models and flash memory devices; and an analog RGB video input for your PC. Employing two advanced 32-bit DSP chips and low-jitter 24-bit Burr-Brown DACs, the TXNR808 effortlessly handles your audio-processing needs. Whether it’s lossless Dolby and DTs formats on Blu-ray Disc, or new-dimension surround formats from Audyssey and Dolby, your audio signals retain every lifelike nuance. All things considered, the TXNR808 is a serious challenger for the middleweight crown.
Search below for Onkyo Home Theater Products or any other products on Amazon!
Top 100 Best Selling Home Audio Products
HDMI® 1.4a Support for 3D Video and Audio
Return
The seven HDMI 1.4a inputs on the TXNR808 let you simultaneously connect high-def sources such as a Blu-ray player, a gaming console, and a cable/satellite tuner. A single output then sends a pristine signal to your connected high-resolution display. As the latest version of this connector, HDMI 1.4a adds the exciting possibilities of 3D video and an Audio Return Channel. 3D video is the next big thing in home entertainment, with movie, game, and broadcast content on the increase and 3D-compatible TVs coming to market. The TXNR808 also offers the convenience of an Audio Return Channel via HDMI. Audio content received directly by your HDTV’s tuner can be sent "upstream" to your A/V receiver, without the need for a separate S/PDIF audio cable.
Windows® 7 Compatible PC Audio and Internet
Radio
As one of Onkyo’s new breed of receivers that can link directly to the Internet or to your home PC via a local network, the TXNR808 takes streaming audio and Internet radio to a whole new level. MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, and LPCM audio files—whether on your PC or from the Internet—can now be played back through your main system with unprecedented power and fidelity. The TXNR808 brings to life a huge array of Internet radio channels from Pandora®, SIRIUS Internet Radio®, vTuner, and more*. As well as being compatible with earlier platforms, the receiver is compatible with Microsoft’s new Windows 7 platform, which includes the DLNA 1.5-specified "Play To" media-streaming feature. Another benefit of having the TXNR808 connected to the Internet is that you can then easily update its firmware.
Audyssey DSX™ and Dolby® Pro Logic® IIz
Surround Sound
The TXNR808 handles two new surround-sound technologies from Audyssey and Dolby that offer exciting new ways to set up the speakers in your home theater system. Audyssey DSX lets you incorporate "front wide" speakers, in place of the usual surround back speakers, to expand the width of the soundstage. Set up at a recommended 60° off center, these channels help to produce a more realistic soundstage and a more immersive listening experience. Alternatively, Audyssey DSX can reconfigure the TXNR808’s surround back channels to deliver "front height" channels. These channels carry ambient, non-directional audio that adds a new vertical dimension to your movies and games. Dolby Pro Logic IIz provides a similar front height speaker option that likewise works to create a more enveloping home theater experience.
THX® Select2
Plus™ Certified
THX Select2 Plus certification is specified for rooms where the screen-to-seat viewing distance is 10 to 12 feet and the room volume is around 2000 cubic feet. To achieve THX Select2 Plus certification, the TXNR808 had to meet the world’s most demanding standards for home theater audio quality and performance, and play at reference volume levels with minimal distortion.
HDMI
Video Upscaling to 1080p with Faroudja Dcdi Cinema™
When it comes to video processing, Faroudja Dcdi Cinema offers several advantages. This processor can accept any video signal, regardless of the source resolution, and upscale it to 1080p to match the native resolution of your high-definition display. What’s more, Dcdi Cinema effectively removes video artifacts such as jagged edges during the video signal deinterlacing process. You get to enjoy smooth progressive scan video images, even for fast-moving sports and action scenes.
PLL (Phase Locked
Loop) Jitter-Cleaning Circuit Technology
Jitter is an unwanted side-effect of the digital-to-analog conversion process. Caused by fluctuations in the time domain of a digital signal, jitter has a detrimental impact on perceived audio quality. PLL jitter-cleaning circuit technology reduces jitter by comparing the input and output phases of the digital signal and creating an accurate clock waveform. This enhances the precision of digital signal processing and noticeably improves audio quality. Jitter-cleaning technology works both for digital signals input via HDMI and for digital signals converted from analog signals inside the receiver itself.
Playback of
Different Audio Sources in Up to Three Rooms
With Powered Zone 2, you can enjoy surround sound entertainment in the main room, while playing back a different stereo source in a second zone equipped with a pair of speakers. Alternatively, you can use the Zone 2 and Zone 3 pre-outs to send separate, unamplified audio signals to amplifiers (and speakers) in a second and third room. Naturally, you also have the option of distributing the same audio source to two or three zones simultaneously.

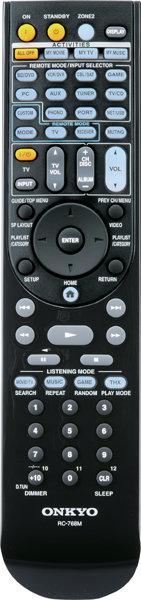

RI Remote with
On-Screen Setup and 4 Presets
The TXNR808’s remote controller offers the convenience of controlling a wide range of other devices connected to the receiver. You can select your connected devices from an on-screen list and preprogram your desired settings for each device. The receiver itself can then send these settings automatically to the remote controller. Furthermore, the TXNR808 lets you set up macro presets for up to four activity modes, which you can control via mode-key LEDs on the remote controller. A single button-press of "My Movie," for example, can simultaneously turn on the receiver, display, and Blu-ray player to your preprogrammed settings and start playing a disc automatically.
Top 100 Customer-rated Home Audio Products
Key Features
Advanced Features
- THX® Select2 Plus™ certified
- HDMI® (Version 1.4a to support 3D and Audio Return channel) with Deep Color™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, multichannel PCM, and CEC
- 7 HDMI inputs (1 front/6 rear) and 1 output
- Audyssey DSX™ and Dolby® Pro Logic® IIz for new surround channels
- PLL Jitter-Cleaning circuit technology
- Audyssey MultEQ® for room acoustic correction
- Network capability for streaming audio files (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, and LPCM)
- Internet radio connectivity (Pandora®, Rhapsody®, SIRIUS Internet Radio®, Napster, Mediafly™, Slacker, and vTuner)*
- Certified with Windows® 7 and DLNA version 1.5
- Firmware updates via Ethernet and USB
- Pop open front-panel USB input for memory devices and iPhone®:/iPod® models (enables display of album artwork)
- Powered Zone 2 and Zone 2/3 pre-outs for distributed audio playback in multiple rooms
Amplifier Features
- 135 Watts per Channel at 8 Ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC
- WRAT (Wide Range Amplifier Technology)
- Three-stage inverted Darlington circuitry
- H.C.P.S. (High Current Power Supply) Massive High Power Transformer
- Linear optimum gain volume circuitry
Processing Features
- Burr-Brown 192 kHz/24-Bit DACs (PCM1690) for all channels
- Two 32-Bit processing DSP chips (DA830 and CS49834)
- Dolby® TrueHD, DTS-HD Master Audio™, Dolby® Digital Plus, DTS-HD High-Resolution Audio™ decoding
- HDMI video upscaling to 1080p with Faroudja Dcdi Cinema™
- 4 DSP modes for gaming: rock, sports, action, and RPG
- Music Optimizer™ for compressed digital music files
- Direct mode and pure audio mode
- A-Form listening mode memory

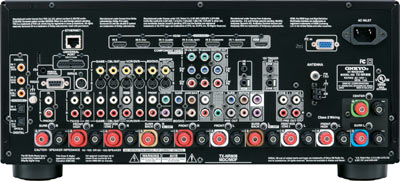

Connection Features
- Universal port for single-cable connection of optional Onkyo dock for iPhone®/iPod® or HD Radio™ tuner
- Component video switching (2 inputs and 1 output)
- 4 S-Video inputs and 2 outputs
- Analog RGB video input (D-sub, 15 pin) and audio input for PC
- 6 digital inputs (3 optical and 3 coaxial)
- 5 A/V Inputs (1 front/4 rear) and 1 output
- Color-coded, 7.1 multichannel inputs
- Video output (monitor)
- 1 audio input
- Phono input
- Color-coded, 7.2 multichannel pre outs
- RS232 port, IR (In/Out), and 12 V trigger outs (zone 2/3)
- Bi-amping capability
- Color-coded, Banana Plug-compatible speaker posts
- RIHD (Remote Interactive over HDMI) for system control
- SIRIUS Satellite Radio® ready** and HD Radio ready
Other Features
- Overlaid graphical on-screen display (OSD) via all video outputs
- Audyssey Dynamic Volume™
- Audyssey Dynamic EQ® for loudness correction
- Crossover adjustment (40/50/60/70/80/90/100/120/150/200 Hz)
- A/V sync control function (up to 250 ms in 5 ms steps)
- 40 FM/AM/SIRIUS random presets
- Compatible with RI (Remote Interactive) dock for iPod
- Bi-Directional, preprogrammed, and customizable RI remote control with on-screen setup, Mode-Key LEDs, and macro presets for four activities
What's in the Box
Onkyo TXNR808 7.2-Channel Network A/V Receiver, indoor FM antenna, AM loop antenna, speaker cable labels, speaker setup microphone, instruction manual, quick start guide, remote controller, AA (R6) batteries (2).
Technical Specifications
Amplifier Section
|
Video Section
Tuner Section
General
|
Top 100 Customer-rated Home Audio Products
Most Helpful Customer Reviews
I bought the ONKYO TXNR808 to replace my
aging 10 year old Lexicon DC-2 pre-amp and Carver Professional amps. The
Onkyo powering Miller and Kreisel THX 750 5.1 speaker system.
I figured that after 10 years I could use a audio update even though the
Lexicon is still a amazing piece of equipment but I didn't want to spend
$6500 this time around.
I wanted a receiver that had all of the newer DTS and Dolby surround
formats and could power the 4 ohm M&K speakers (8 vs 4 ohm setting in the
setup menus).
It sounds great I love the video switching and the great on screen display
of settings.
I have a Netgear 9150 Digital entertainer Elite hooked to it with only one
HDMI cable. Being able to use the HDMI really cleans up the cabling since
it can also send the audio over the same cable. Same thing goes for my HD
cable box, HDMI no seperate audio cable needed.
I haven't had any problems with the Ethernet not connecting, even though I
did let it update via the internet. The streaming off connected networked
computer is nice also, without any problems. Pandora works flawlessly.
For the price and features it cannot be beat.
Also Amazon has it for the lowest price.
UPDATE: 07-02-11
Still no problems. I now have a HTPC hooked up running WMC and Boxee.
Awesome product for the money.
-----------------------------------------------------------------------------------------
I previously bought a 1120k receiver and returned it for
this one. Please see my companion 1120k review and the LSI15 review (right
speaker even though I bought both) if you're curious.
I used this amplifier to drive 4 ohms speakers. Most audiophiles will tell
you to get external amplification to drive them. I am usually skeptical of
these claims.
Myth: You will need external amplifiers to drive 4 ohm speakers. False. I
pushed these with an Onkyo 808 135 watts at 8ohms, not sure about the 4
ohms spec as Onkyo doesn't advertise it. There was absolutely no clipping
at ear blistering level. No harshness whatsoever from the LSI15 that I
heard from the C-5. At high volume, the Energy C-5 gave me a headache.
However, the LSI were still extremely smooth. Those speakers (LSI15) are
89db efficiency at 1 watt, so if I push it to 110db, it would require only
128 watts to push. 110db is far louder than comfortable for most living
rooms. I guess if you like listen to it louder, then external
amplification would be needed. Most normal people wouldn't. Tip: Don't set
the receiver to 4 ohm mode. Leave it at 8 ohms. The 4 ohm mode only serve
to cut the power output to protect the receiver. My receiver has two fans
that I never noticed turning on. Onkyo got smart by inserting fans.
Previously, they were hot enough to cook eggs. Would external
amplification improve sound quality? I have my doubts. I am a firm
believer in amplifiers used for extreme volume only. Normal listening
level does not require an amplifier to improve quality (relative to this
receiver, lesser receiver may have issues). However, if anyone has an
amplifier and wants to prove me wrong, I'm ready to be a believer.
The Onkyo 808 is a huge beast with a very hefty heat sink with dual fans.
It has every single high-end adjustable settings you can think of. The
only thing I discovered is that the noise correction caused my Netflix
stream to ghost. However, that may be due to the noise correction
algorithm coupled with the 120hz mode on my TV. Turning off the noise
correction fixed the ghosting for me. The quality of the up conversion is
good but perhaps a little soft for SD. I do not have an A to B comparison
with the Pioneer so I can't be sure which is better. If the Marvell is
better, I didn't notice it. However, I would not suggest buying an audio
receiver for the video processing chip. Most SD look bad regardless of up
conversion, and most high def source look best at native resolution of
your TV. I've been reading on the Internet that the Marvell chip is so
much better than the Faroudja. There is definitely an improvement on up
conversion for either chips, but you can't make SD look HD no matter how
hard you try. At least for me, DVD's looked like crap (in comparison to
HD) on both the Pioneer and the Onkyo receivers. Therefore, I chalk up
conversion as tie for both = equally crappy.
The HDMI is good. My PC picked up the receiver as an output source
quickly.
PROS:
135 Watts
Drive 4ohms speakers well
OSD for volume
Excellent Internet radio functionality
Regular cable for IPOD
Dual fans to cool heat sink
Per input level gain
Per speakers cross-over
Dual subwoofer output
Trigger
Firmware upgradeable (make sure you update right away)
CONS:
Warmer than the Pioneer
Update 12/10/10: No dialogue enhancement
No Iphone App
This receiver is actually very good. I returned the Pioneer even though I
got an extremely good deal for it. If you don't need the 135 watts, I
recommend the 708 instead. However, at the current $70 online price
difference between the 708 and 808, I would get the 808 for insurance. Who
knows, you may want to buy 4ohm speakers later on =) and you'll save
yourself the upgradeitis agony. The Pioneer 1120k is currently about $100
cheaper than the 708 street price. It's an excellent receiver if you only
need 110 watts and no trigger. However, if you want Internet radio
functionality, volume OSD, and per input volume gain, per speaker
cross-over, pick the 708 or 808 instead.
Update (11/15/10): After having used it a few weeks, I have not discovered
anything wrong with it since I updated the firmware immediately when I
received it. The firmware updated pretty easily over the Internet (make
sure its in USB mode first or you'll get an error). The Internet radio is
very cool and works flawlessly. You do not need conventional radio with
this option since most radios networks have an Internet versions online. I
found some online Internet radio with 256k quality as well as radios from
around the world.
I had to adjust my input to +6db to my UVerse box and +3 to my HTPC to
make it the same level as the PS3 (which is always louder for some
reason). I don't suggest anyone purchase any receiver that lack this
feature. My old Denon had it and this one has it. I missed it immediately
when I bought the Pioneer. The online display shows both volume level as
well as the input label as well so I don't have to look at the receiver
through the glass door which is a plus. I have not heard the fan come on
yet so I believe the dual fans may be installed as a precaution rather
than a necessity (then again, it's not Summer right now).
All in all, I'm very happy with this receiver. I originally wanted a Denon
3111 as a replacement but Denon is not budging on MSRP right now which
means it would have cost me almost twice as much as this one. There are
currently no other receivers on the market that has the comparable
features as this one at this price range.
Update 12/10/10: Added the two Cons. I do miss the dialogue enhancement
and the Iphone app was very cool on the Pioneer.
-----------------------------------------------------------------------------------------
So I purchased the TXNR808 to replace my Onkyo TX-SR800
mainly just for the Dolby TrueHD and DTS-HD MA decoding, but man was I
blown away by the overall sound quality improvement with standard DD, DTS,
and stereo as well! I am a very expianced home theater installer, and I am
ashamed to say that I didn't realize how much of a difference 35 watts per
channel would make. I have a 7.1 speaker setup featuring Polk Audio RTi10
tower speakers and a Velodyne 10" powered sub, which have always sounded
great, but let me tell you that these speakers have never sounded so
amazing as they do now with this receiver! WOW! Any source that i've run
through it(CD, DVD, iPod, or Blu-ray) has resulted in a sonic explosion!
Highs, mids and lows all are perfectly represented by the 808. So.... the
real question most people want to know the answer to is.... "Does Dolby
TrueHD and DTS-HD sound better then standard DD and DTS?" The answer is
ABSOLUTELY YES! I watched Kung Fu Panda to compare the difference and it
was immediately obvious that the Dolby TrueHD trumped the DD track in
every way. Then I put in "Crank 2" to hear what a DTS-MA HD 7.1 mix could
do. Let me say that once the DTS logo started I was left absolutely
speechless until the credits ended! Sonic power and clarity is all I can
say. With either format you get improved ambiance, harder hitting bass,
and amazing dynamic range which creates an unequalled movie watching
experiance! No movie theater can even come close the the sound quality I
now have in my home theater!
I will now list some of the other improvements that this receiver does
that my old one didn't.
1. I now have the volume displayed on my screen via the HDMI out on the
receiver. Very handy since my components are in the room behind my theater
room!
2. I can connect it to my home network and play all my music from my
computer instantly!
3. The receiver programs the remote for you after you tell it what
components you have. Awesome!
4. It takes any video input whether it's composite, s-video, or component
and sends it to your TV, upconverted to HD through the HDMI out!
To summarize. . . with all the features that this receiver has for the low
price that I paid through Amazon I couldn't be happier with the TXNR808!
This is bar none the best receiver that I have ever heard for under
$1,500!
Top 100 Best Selling Home Theater Products

Check out other TXNR808 Models and accessories below!
Privacy Policy | Contact Us | Onkyo1.com Blog
Copyright © 2011 Onkyo1.net
